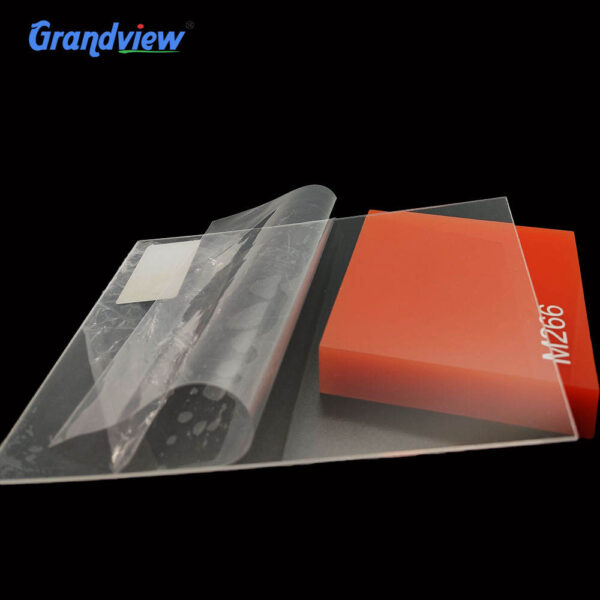

Premium Clear Acrylic Sheets
When your project demands the pristine, high-definition look of glass without the heavy weight or fragility, our Clear Acrylic Sheets are the perfect solution. Extruded and cast from 100% pure, virgin Lucite MMA in a state-of-the-art dust-free workshop, these A-grade sheets offer unparalleled optical clarity and extreme impact resistance. Whether you are building outdoor signboards or intricate retail displays, we deliver the quality you can trust.
Properties Values of Grandview Clear Acrylic Sheets
PROPERTIES | VALUES | RULES |
Rockwell Hardness | 112L | ISO 2039-2:1999 |
Tensile Modulus | 3150MPa | EN ISO 527:2012 |
Tensile Strength | 80.0MPa | EN ISO 527:2012 |
Tensile Strain at Break | 3.2% | EN ISO 527-1:2012 |
Water Absorption | 0.20% | ISO 62:2008 Method 1 |
Total Luminous Transmittance | 92.5% | ISO 13468-1:1996 |
Vicat Softening Temperature | 103℃ | ISO 306:2013 Method B50 |
Light Ageing Test- UV Exposure | Grey scale: 5 | ISO 4892-3:2016 Cycle 1 |
Mean Coefficient of Linear Thermal Expansion | 72×10-6 K-1 | ISO 11359-1:2014 |
Compressive Stress at Yield | 129MPa | EN ISO 604:2003 |
Flexural Strength | 120MPa | ISO 178:2013 |
Izod Notched Impact Strength | 101J/m | ASTM D256-10 Method A |
Compressive Yield Strength | 111MPa | ASTM D695-15 |
Compressive Modulus | 3450MPa | ASTM D695-15 |
Shear Strength | 59.7MPa | ASTM D732-17 |
Deflection Temperature under Load | 100.2℃ | ASTM D648-18 Method B |
Modulus Elasticity | 2810MPa | ASTM D695-15 |
Engineered for Excellence and Longevity
We know that material failure is not an option for your business. That is why our clear acrylic is packed with premium features:
10-Year Weather Resistance: Don’t let the sun degrade your hard work. Our clear panels are highly UV-resistant, boasting a 10-year guarantee against yellowing and fading. They look as brilliant on day 1,000 as they do on day one.
Flawless Fabrication: Say goodbye to melted edges, toxic smoke, or cracking. Our cast acrylic is highly favored by fabricators because it cuts cleanly with CO2 lasers, routes smoothly, drills easily, and bends perfectly during thermoforming.
Superior Transparency: With a light transmittance rate of 93%, it provides a brilliant, distortion-free view that rivals the best optical glass, while being significantly lighter and safer.
Clear Acrylic Sheets Size And Thickness
Size ( mm ) | T ( mm ) | Size ( mm ) | T ( mm ) |
1220*2440 | 2-30 | 1500*3000 | 3-12 |
1220*1830 | 2-30 | 1500*2500 | 3-12 |
1000*2000 | 2-30 | 1600*2600 | 3-12 |
2000*3000 | 3-12 | 1780*2440 | 2-15 |
Technical Specifications at a Glance

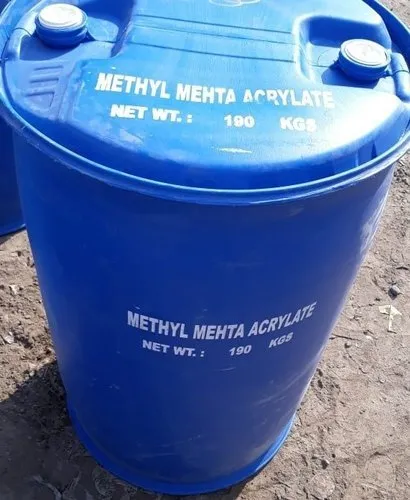

Material: 100% Virgin Lucite MMA (Cast Acrylic)
Thickness Range: From ultra-thin 1mm to heavy-duty 50mm to suit any structural need.
Temperature Tolerance: Excellent environmental stability, performing beautifully in -40°C to 80°C.

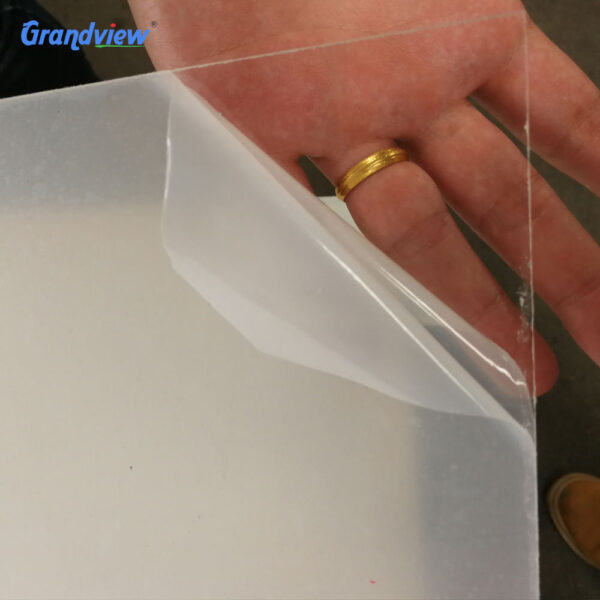

Surface Protection: Delivered with premium PE film or moisture-proof kraft paper on both sides to prevent scratching during transit (Custom brand logo printing available).
 |  |  |  |
| Warranty | Pure MMA | CO2 Laser Cutting | Services |

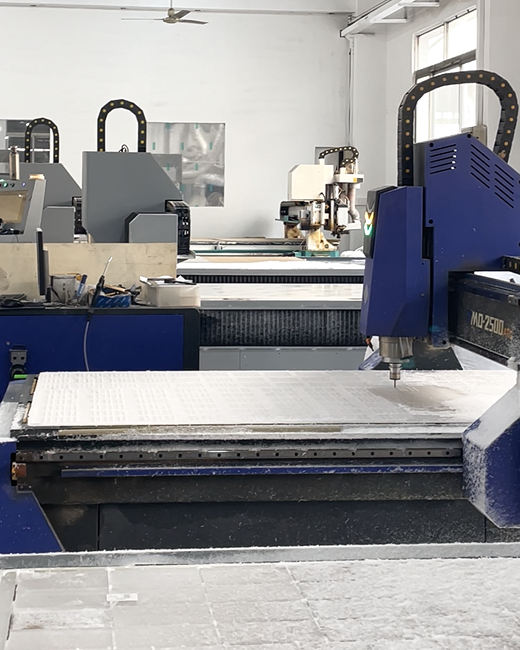

| All acrylic sheets are UV resistant. Outdoor use warranty 8-10 years no yellowing no fading | A Grade Cast Acrylic Sheet with 100% pure all new MMA raw material from Lucite SH factory | CO2 Laser cutting No odor no smoke, easy to gule bond, easy to heat bending and forming | Provide additional CNC cut, CO2 laser cutting, printing, marking and other customized services |
 |  |  |  |
| Print Your Brand | Auto Production | Full Thickness | Proective Film |
| You can print your own brand logo on protective paper and only need to pay a mold fee | Advanced automated production line in the dust-free workshop | Sufficient thickness and best thickness tolerances | Protective film, reliable and durable, can be stacked, easy to move, no adhesive residue |
Endless Applications Across Industries
Because of its heat resistance, anti-scratch properties, and pristine clarity, Our transparent acrylic sheets is the go-to material for:
High-end retail display cases and cosmetic stands.
Outdoor illuminated sign boards, light boxes, and channel letters.
Transparent non-glass shields and protective barriers.
Custom architectural glazing and commercial fabrication projects.
Ready to bring your blueprints to life? Tell us your required dimensions, thickness, and quantity. We offer fast sampling, reliable factory-direct pricing, and professional DFM (Design for Manufacturability) support!
